HX series.
High-performance
tractors for big
jobs.

  • 91-140 HP

    Power range

  • 3,833 CC

    Engine displacement

  • 180-230 L

    Fuel tank

HX Series.
Utility Tractors.

Built for raw power, operator comfort, and peak performance, the HX Series utility tractors are KIOTI’s most powerful utility tractors. They are the ideal choice for farmers and ranchers who demand the best to manage livestock, haul hay bales, and boost productivity.

  • Powerful 3.8L Diesel Engine

    The 3.8L four-cylinder Daedong CRDI diesel engine delivers between 91 and 140 HP, depending on the model. Turbocharging and intercooling combine strong performance with efficient fuel consumption, while three models offer additional boost power when required.

  • Versatile Configuration Options

    With five power levels, 32×32 transmission options, and either a manual or 8-speed powershift transmission depending on the model, the HX Series can be tailored to a wide range of applications. Additional features include a 4,410 kg rear lift capacity, up to five double-acting remote valves, and optional front linkage and front PTO.

  • Technology for Productive Operation

    Automatic four-wheel drive, electronic hitch control, and a power shuttle transmission help simplify daily work. Optional technologies such as ISOBUS, guidance systems, Task Control, RTK steering support, and KIOTI Connect further enhance machine productivity and digital workflow integration.

Features

Explore all the HX series' features.

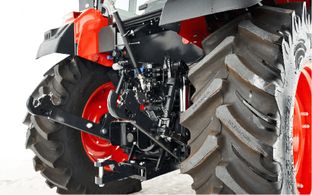

Rear Hydraulics

3 DW control units can be installed at the rear. The powerful KAT 2 rear power lift has a lifting capacity of 4.4 t. The Scharmüller system (optional) enables safe trailer operation.

Flexible Steering Column

The swivel & telescopic steering column makes it easier to get in and out of the cab and makes the working position more ergonomic.

Front Axle with LSD differential

The robust Daedong front axle with multi-disc limited slip differential (LSD) ensures maximum traction in all conditions.

Clutch button on Gearshift

The 32/32 Power Shuttle transmission has one power shift stage. The clutch button on the gear lever makes work easier, especially during transportation.

Spacious 5-post cab

The spacious cab impresses with its unobstructed all-around visibility, air conditioning, many storage options, and ergonomic controls.

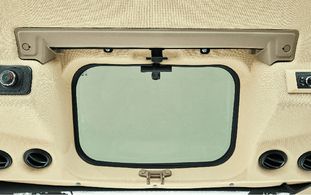

Sunroof

The sunroof provides a very good view of the raised front loader. It can be darkened, and when opened, provides additional fresh air supply.

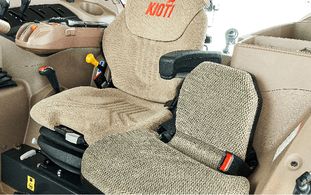

Air suspension seat with Control Armrest

The air suspension driver’s seat with operating armrest ensures relaxed work. The passenger seat with seat belt offers the passenger complete safety.

All Wheel Drive

The all-wheel drive can be conveniently switched on at the push of a button. The automatic all-wheel drive automatically switches off the all-wheel drive when 20 km/h is exceeded.

Automatic PTO switching

The all-wheel drive can be conveniently switched on at the push of a button. The automatic all-wheel drive automatically switches off the all-wheel drive when 20 km/h is exceeded.

PTO and Lift Exterior Controls

Practical operating aid for the PTO shaft when operating rear attachments, such as log splitters. Practical when attaching rear attachments.

Specifications

Side by side comparison.

Model

HX1201ATC-EU

HX1302ATC-EU

HX1402ATC-EU

HX1303ATC-EU

HX1403ATC-EU

HX9010PC-EU

HX1001PC-EU

HX1201PC-EU

Engine

Engine
ManufacturerDaedongDaedongDaedongDaedongDaedongDaedongDaedongDaedong
ControlElectric (CRDI)Electric (CRDI)Electric (CRDI)Electric (CRDI)Electric (CRDI)Electric (CRDI)Electric (CRDI)Electric (CRDI)
Emissions Standard55555555
Engine Gross Power (ECE-R120) HP(kw)125.4 (93.5)130.1 (97.0)140.1 (104.5)130.1(97.0)140.1(104.5)98.6 (73.5)110.0(82.0)125.4 (93.5)
Rated revolution rpm22002200220022002200220022002200
No.of cylinders44444444
Total displacement3,833(233.9)3,833(233.9)3,833(233.9)3,833(233.9)3,833(233.9)3,833(233.9)3,833(233.9)3,833(233.9)
Turbo Charge cc(cu in.)Turbocharged & IntercoolerTurbocharged & IntercoolerTurbocharged & IntercoolerTurbocharged & IntercoolerTurbocharged & IntercoolerTurbocharged & IntercoolerTurbocharged & IntercoolerTurbocharged & Intercooler

Capacity

Capacity
Fuel tank ℓ(us gal)180 (47.55)230(60.7)230(60.7)230(60.7)230(60.7)180 (47.55)180 (47.55)180 (47.55)

PTO

PTO
Maximum PTO Power HP(kw)99.2(74)117(87)123(92)117(87)123(92)77.7(58)80.4(60)99.2(74)
Rear PTOSAE 1-3/8, 6 splineSAE 1-3/8, 6 splineSAE 1-3/8, 6 splineSAE 1-3/8, 6 splineSAE 1-3/8, 6 splineSAE 1-3/8, 6 splineSAE 1-3/8, 6 splineSAE 1-3/8, 6 spline
Rear PTOIndependentIndependentIndependentIndependentIndependentIndependentIndependentIndependent
Rear PTO rpm540/750/1000540/750/1000540/750/1000540/750/1000540/750/1000540/750/1000540/750/1000540/750/1000

Hydraulic

Hydraulic
3 Point Lift Control TypeElectronic controlElectronic controlElectronic controlElectronic controlElectronic controlElectronic controlElectronic controlElectronic control
Total hydraulic flow lpm(cc/rev)121,0121,0121,0166,8166,8121,0121,0121,0
3-point hitch typeCategory ⅡCategory ⅡCategory ⅡCategory ⅡCategory ⅡCategory ⅡCategory ⅡCategory Ⅱ
@lift point (Through the full range) kg.f(lbs)36653665366546824682366536653665
@610mm point (Through the full range) kg.f(lbs)36303630363038523852363036303630
Max. Trailer loading weight kg.f8000(12000)8000(15000)8000(15000)8000(19000)8000(19000)8000(14000)8000(14000)8000(14000)
No.of standard remote valves (Front/Rear)( 3 / 3 )( 3 / 3 )( 3 / 3 )( 6 / 8 )( 6 / 8 )( 2 / 2 )( 2 / 2 )( 2 / 2 )

Drive Train

Drive Train
TransmissionPower shift transmissionPower shift transmissionPower shift transmissionPower shift TransmissionPower shift TransmissionPower shuttle TransmissionPower shuttle TransmissionPower shuttle Transmission
Main gear shift x range gear shift32(8X2X2)32(8X2X2)32(8X2X2)32(8X2X2)32(8X2X2)32(2X4X4)32(2X4X4)32(2X4X4)
No. of speeds32X3232X3232X3232X3232X3232X3232X3232X32
shuttle TypePower shuttlePower shuttlePower shuttlePower shuttlePower shuttlePower shuttlePower shuttlePower shuttle
SteeringHydrostatic power steeringHydrostatic power steeringHydrostatic power steeringHydrostatic power steeringHydrostatic power steeringHydrostatic power steeringHydrostatic power steeringHydrostatic power steering
Mechanical differential lockRear standardRear standardRear standardRear standardRear standardRear standardRear standardRear standard

Traveling Speeds

Traveling Speeds
Forward km/h(mph)0.38~37.83(0.24~23.51)0.38~40.48(0.24~25.15)0.38~40.48(0.24~25.15)0.38~40.48(0.24~25.15)0.38~40.48(0.24~25.15)0.24~40.21(0.15~24.99)0.24~40.21(0.15~24.99)0.24~40.21(0.15~24.99)

Other features

Other features
Tilt steeringStdStdStdStdStdStdStdStd

Dimensions

Dimensions
Overall length (w/o front weight and w/o 3pt hitch) mm(in.)4,055 (including support, +60mm)4,235 (including support, +60mm)4,235 (including support, +60mm)4,235 (including support, +60mm)4,235 (including support, +60mm)4,055 (including support, +60mm)4,055 (including support, +60mm)4,055 (including support, +60mm)
Overall length (w/o front weight and w/3pt hitch) mm(in.)4,398 (including support, +60mm)4,518 (including support, +60mm)4,518 (including support, +60mm)4,518 (including support, +60mm)4,518 (including support, +60mm)4,398 (including support, +60mm)4,398 (including support, +60mm)4,398 (including support, +60mm)
Overall length (w/front weight and w/3pt hitch) mm(in.)4.7674.8874.8874.8874.8874.7674.7674.767
Overall height (CAB) mm(in.)28432906290629062906284328432843
Wheel base mm(in.)24102600260026002600241024102410
Ground(Crop) clearance mm(in.)481 (step)496(19.5) (step)496(19.5) (step)496(19.5) (step)496(19.5) (step)481 (step)481 (step)481 (step)
Weight with Cabin and AG tires kg.f(lbs)4.6434.9644.9644.9644.9644.4284.4284.428
Max. permissible weight kg.f(lbs)71007915791579157915710071007100

Functional Specifications

Functional Specifications
Creep gearStdStdStdStdStdStdStdStd
4WDStdStdStdStdStdStdStdStd
Front PTONANANANANANANANA
Rear PTOStdStdStdStdStdStdStdStd
Rear Remote Hydraulic Valve (No. of Valves)Std: 3 (Opt: 1)Std: 3 (Opt: 1)Std: 3 (Opt: 1)Std : 4 (Opt : 1)Std : 4 (Opt : 1)Std: 2 ( Opt: 1 )Std: 2 ( Opt: 1 )Std: 2 ( Opt: 1 )
Joystick valveStdStdStdStdStdStdStdStd
Differential lock warningNANANANANANANANA
Air ConditionerStdStdStdStdStdStdStdStd
Air suspension seatStdStdStdStdStdStdStdStd
TelematicsStdStdStdStdStdStdStdStd
